Normally White 7.0 Sharp LCD Panel LQ070T5BG01 with 155.52×87.75 mm Active Area

LQ070T5BG01 Detail

Panel Brand :	SHARP
Panel Model :	LQ070T5BG01
Panel Type :	a-Si TFT-LCD , LCM
Panel Size :	7.0 inch
Resolution :	480(RGB)×234
Display Mode :	TN, Normally White, Transmissive
Active Area :	155.52×87.75 mm
Outline :	173×106 mm
Surface :	Antiglare
Brightness :	300 cd/m² (Typ.)
Contrast Ratio :	60:1 (Min.)
Display Colors :	Full color
Response Time :	30/50 (Typ.)(Tr/Td)
Viewing Angle :	65/65/40/65 (Typ.)(CR≥5) (L/R/U/D)
Frequency :	60Hz
Lamp Type :	2 pcs CCFL Without Driver
Signal Interface :	Analog RGB + Composite Video (NTSC/PAL) , 24 pins
Input Voltage :	5.3/13/-16V (VSH/VGH/VGL)

What’s our advantage compared with other suppliers?

(1). Before shipment, we will test every LCD Screen and ensure the quality.

(2). we provide high quality lcd panels for customers all over the world.

(3) .We have DBS, ISO9001 Certifications for our Panels.

(4) .Excellent service on before-sale, on-sale and after-sale.

Panel Size :	7.0 inch
Dot Resolution :	480(RGB)×234
Pixel Configuration :	RGB Vertical Stripe
Pixel Density :	75 PPI
Aspect Ratio :	16:9 (H:V)
Form Factor :	Flat Rectangle Display
Dot Pitch :	0.108×0.375 mm (H×V)
Pixel Pitch :	0.324×0.375 mm (H×V)
Weight :	285±20g
Surface :	Antiglare
Active Area :	155.52×87.75 mm (H×V)
Outline Dimension :	173×106 mm (H×V)
Outline Depth :	14.7 (Typ.) mm
Landscape or Portrait :	Landscape type
Touch Panel :	Without

Packaging & Shipping for Our LCD panel

1. We will ship the LCD display panels within 1-3 workdays after receipt of payment.

2. We can ship to you by UPS/FEDEX/DHL and so some other direct international express line.

Other shipping terms can also be arranged according to specific requirements.

Here comes our other LCD panels stock for your easy reference:

Pls contact to us for more stock information: salespm@nselectronic.com.hk

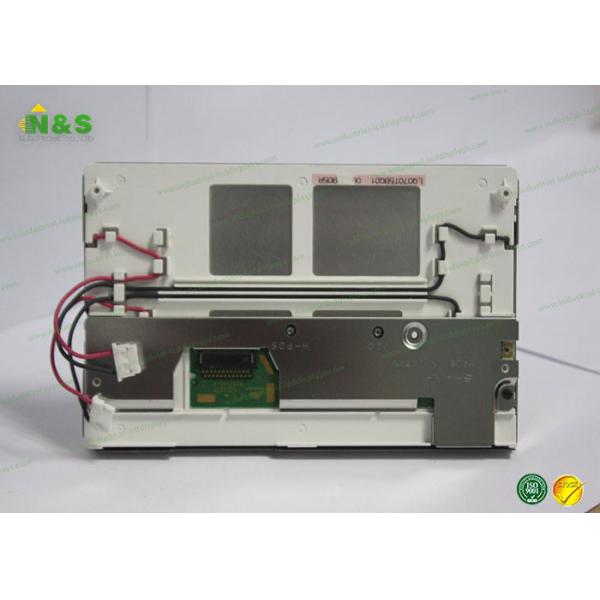

LQ070T5BG01 Picture

Who we are:

      N&S ELECTRONIC CO., LTD established in year 2010. Our headquarters located in Hong Kong and branch office in Shenzhen, Singapore, Malaysia and Canada. We are professional distributor on LCD panels with our own warehouse and stock. Our goal is to provide worldwide supply chain solution based on integrity.

What we do:

      As the leading LCD distributor in China, we are strong at EOL panels and hard to find panels of famous brands such as NEC, SHARP, AUO, SAMSUNG, LG, TIANMA, HITACHI, KOE etc.

     Our products lines are widely used on medical apparatus, industrial control facilities, portable electrical impedance measurement apparatus, digital video camera display, vehicle equipment, aerospace equipment.

     Our products mostly cover small sizes, like 1.5", 2.0", 2.2", 2.5", 3.0", 3.5", 4.0", 4.2", 4.3", 4.7", 5.0", 5.5", 5.7", 6.0", 6.4", 7.0", 8.0", 10.1", 10.4", 12.1", etc. Most of them are original factory sealed carton packing. Moreover, we will do the brightness inspection of them by testing board.

Our Advantages:

       LCD panels are sourced directly from manufacturers, OEM/CM's and worldwide business partners spanning five continents that include 40 COUNTRIES or AREAS, United States, Italy, Singapore, Korea, Taiwan, Germany, Thailand, Malaysia, Japan, etc. There are more than 540 enterprises. With our strong sourcing team and sufficient stock in our warehouse, and our professional Quality Control team and professional testing instruments, we can offer reliable quality panels at competitive price.

     N&S will be your powerful partner on LCDs in China. Here we are to quote your need.
