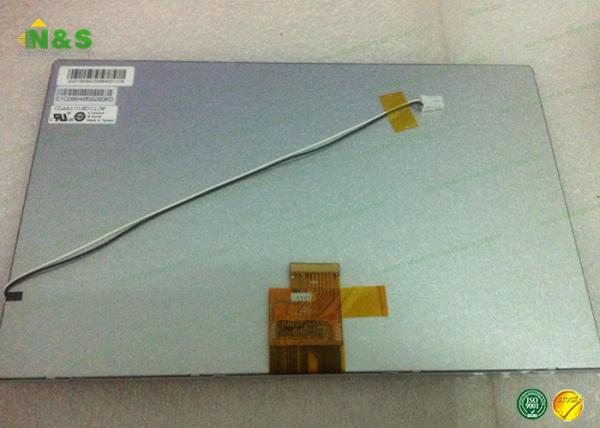

    CLAA101ND01CW TFT LCD Module CPT Normally White 10.1 inch LCM 1024×600

    Ask Lasest Price
    Brand Name : CPT
    Model Number : CLAA101ND01CW
    Certification : ISO9001
    Payment Terms : Western Union, T/T, MoneyGram, T/T
    Supply Ability : 500PCS/DAY
    Delivery Time : 1-3 Working Days
    • Product Details
    • Company Profile

    CLAA101ND01CW TFT LCD Module CPT Normally White 10.1 inch LCM 1024×600

    CLAA101ND01CW TFT LCD Module CPT Normally White 10.1 inch LCM 1024×600


    Packaging & Delivery

    Packaging Details:

    Safey package

    Plastic trays inside

    2 layes of cartons

    Fragile sign on top

    Can be customize 3.5 inch spare parts auo used lcd panel

    Delivery Detail: 1-3 Working Days


    CLAA101ND01CW Specification


    Panel Size :10.1 inch
    Dot Resolution :1024(RGB)×600 (WSVGA)
    Pixel Configuration :RGB Vertical Stripe
    Pixel Density :117 PPI
    Aspect Ratio :16:9 (H:V)
    Form Factor :Flat Rectangle Display
    Dot Pitch :0.0725×0.2088 mm (H×V)
    Pixel Pitch :0.2175×0.2088 mm (H×V)
    Weight :200g (Typ.)
    Surface :Antiglare
    Active Area :222.72×125.28 mm (H×V)
    Bezel Area :226.0×128.5 mm (H×V)
    Outline Dimension :235×143 mm (H×V)
    Outline Depth :3.2/3.56 (Typ./Max.) mm
    Holes & Brackets :Without
    Landscape or Portrait :Landscape type
    Touch Panel :Without
    Display Mode :TN, Normally White, Transmissive
    Brightness :250 cd/m² (Typ.)
    Contrast Ratio :600 : 1 (Typ.) (Transmissive)
    Display Color :16.2M (6-bit + FRC)
    Color Gamut :50% NTSC (CIE1931)
    Response Time :25 (Typ.)(Tr+Td)
    Viewing Angle :70/70/70/50 (Typ.)(CR≥10) (L/R/U/D)
    Viewing Direction :6 o'clock
    White color Chromaticity :Wx:0.313; Wy:0.329
    White Variation :1.25/1.43 (Typ./Max.)(9 points)
    Sunlight Readable :N

    FAQ

    Q1: What's the quality of your Hard Disk?

    A: Various brands for hard disk etc. We are available to meet your different requirements.

    Q2: What is your return and refund policy?

    A: We provide you excellent after-sales services, and promise you 12-month warranty after shipping to assure you a stable performance.

    Q4: How long is the lead time?

    A: The lead time is about 2-3 working days after receipt of payment.

    Q5: Do you accept sample order?

    A:Yes, sample order is welcome.

    Q6: How can I get the quotation?

    A: Please enquire via Skype, Email, Whatsapp or telephone. You will get reply within 24 hours.


    Below are our other LCD panels stock for your easy reference:

    Panel ModelBrandSizeResolution
    CLAG045LJ72CPT4.5"480×854
    CLAG045LH41 AXXACPT4.5"480×854
    CLAF055WB42 TXXCPT5.5"720×1280
    CLAG050LM01 AXCPT5.0"480×854
