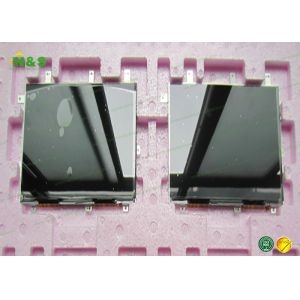

7.0 Inch LD070WS1- SL02 tablet lcd screen panel with 153.6×90 mm Active Area

N&S ELECTRONIC CO., LIMITED
Contact Now
    Buy cheap 7.0 Inch LD070WS1- SL02 tablet lcd screen panel with 153.6×90 mm Active Area from wholesalers

    Buy cheap 7.0 Inch LD070WS1- SL02 tablet lcd screen panel with 153.6×90 mm Active Area from wholesalers
    • Buy cheap 7.0 Inch LD070WS1- SL02 tablet lcd screen panel with 153.6×90 mm Active Area from wholesalers

    7.0 Inch LD070WS1- SL02 tablet lcd screen panel with 153.6×90 mm Active Area

    Ask Lasest Price
    Brand Name : LG Display
    Model Number : LD070WS1-SL02
    Certification : ISO9001
    Payment Terms : Western Union, T/T, MoneyGram, T/T
    Supply Ability : 500PCS/DAY
    Delivery Time : 1-3 Working Days
    • Product Details
    • Company Profile

    7.0 Inch LD070WS1- SL02 tablet lcd screen panel with 153.6×90 mm Active Area

    7.0 inch LD070WS1-SL02 LG LCD Panel LG Display with 153.6×90 mm Active Area

    LD070WS1-SL02 Specification

    Panel Size :7.0 inch
    Dot Resolution :1024(RGB)×600 (WSVGA)
    Pixel Configuration :RGB Vertical Stripe
    Pixel Density :169 PPI
    Aspect Ratio :17:10 (H:V)
    Form Factor :Flat Rectangle Display
    Dot Pitch :0.050×0.150 mm (H×V)
    Pixel Pitch :0.150×0.150 mm (H×V)
    Weight :94/95g (Typ./Max.)
    Surface :Hard coating
    Active Area :153.6×90 mm (H×V)
    Outline Dimension :162.8×102.9 mm (H×V)
    Outline Depth :2.47±0.2 mm
    Holes & Brackets :Face mounting holes (8 pcs) on left, right, up, down slugs
    Landscape or Portrait :Landscape type
    Touch Panel :Without
    Display Mode :IPS, Normally Black, Transmissive
    Brightness :400 cd/m² (Typ.)
    Contrast Ratio :800 : 1 (Typ.) (Transmissive)
    Display Color :262K/16.7M (6-bit / 6-bit + Hi-FRC)
    Response Time :50 (Max.)(Tr+Td)
    Viewing Angle :85/85/85/85 (Typ.)(CR≥10) (L/R/U/D)
    Viewing Direction :Symmetry
    White color Chromaticity :Wx:0.310; Wy:0.340
    White Variation :1.25/1.40 (Typ./Max.)(9 points)
    Sunlight Readable :N



    Our Advantage
    As one of the biggest multiple electronic components & LCD panel distributors in China, we are expert in plenty of branded LCD panels, products include but not limited to:

    1. AUO LCD Screen
    2. Samsung LCD Display
    3. LG LCD Screen replacements
    4. Sharp LCD panels &Chimei LCD Parts.
    5. Innolux LCD Modules & BOE LCD Screen.


    FAQ
    Q1: Can I place sample order first?
    A1: Yes, we will quote you different prices for small, medium and large qty. You can order with different price for different qty.
    Q2: How could I pay them?
    A2: We accept T/T, Western Union, MoneyGram, Paypal.
    Q3: How to place the order?
    A3: Please send us your purchase order by e-mail, whatsapp or Skype or you can ask us to send you a Proforma Invoice for your order.
    Q4: How long can I get my order?
    A4: For samples, we will finish production and ship within 1-3 working days. For bulk orders, that will base on the order quantity.
    Q5: How to send us the products?
    A5: We usually use DHL, UPS, FedEx to ship our LCD screen replacements to our clients.

    Below are our other LCD panels stock for your easy reference:

    Panel ModelBrandSizeResolution
    LH530WX1-SH02LG Display5.3"720×1280
    LH500WX2-SH01LG Display5.0"720×1280
    LH176J03-SH02LG Display1.8"220×176
    LH176J04-TH01LG Display1.8"176×220
    LM230WF5-TJC3LG Display23.0"1920×1080
    LD470DUJ-SFE1LG Display47"1920×1080
