    NEC NL8048BC24-01 NEC LCD Panel 9.0 inch with 196.8×118.08 mm for Industrial Application

    Ask Lasest Price
    Brand Name : NEC
    Model Number : NL8048BC24-01
    Certification : ISO9001
    Payment Terms : T/T, Western Union, MoneyGram
    Supply Ability : 500PCS/DAY
    Delivery Time : 1-3 Working Days
    • Product Details
    • Company Profile

    NEC NL8048BC24-01 NEC LCD Panel 9.0 inch with 196.8×118.08 mm for Industrial Application

    NEC NL8048BC24-01 NEC LCD Panel 9.0 inch with 196.8×118.08 mm for Industrial Application

    NL8048BC24-01 Detail

    Panel Size :9.0 inch
    Dot Resolution :800(RGB)×480 (WVGA)
    Pixel Configuration :RGB Vertical Stripe
    Pixel Density :103 PPI
    Aspect Ratio :15:9 (H:V)
    Form Factor :Flat Rectangle Display
    Dot Pitch :0.082×0.246 mm (H×V)
    Pixel Pitch :0.246×0.246 mm (H×V)
    Weight :365/400g (Typ./Max.)
    Surface :Clear, Hard coating (3H)
    Active Area :196.8×118.08 mm (H×V)
    Bezel Area :200.2×120.4 mm (H×V)
    Outline Dimension :220.5×136.5 mm (H×V)
    Outline Depth :10.5±0.5 mm
    Holes & Brackets :Side mounting holes (4-M2) on left, right bezel
    Landscape or Portrait :Landscape type
    Touch Panel :Without


    What is Our Advantage?

    1. We are the professional supplier of the industrial LCD Screen Replacements, located in the biggest components center of the world.

    2. We can provide the one-stop purchase service.

    3. Our clients can grow their business by focusing on their sales, ware-housing and distribution while we take care of their China buying.

    4. Client relationship and production management are the key factors that ensure successful China buying. Your account will be managed by our professional project managers.

    5. Fast delivery.

    6. Reasonable price.


    Display Mode :TN, Normally White, Transmissive
    Brightness :400 cd/m² (Typ.)
    Contrast Ratio :600 : 1 (Typ.) (Transmissive)
    Display Color :262K/16.7M (6-bit / 6-bit + Hi-FRC)
    Color Gamut :60% NTSC (CIE1931)
    Response Time :6/19 (Typ.)(Tr/Td)
    Viewing Angle :80/80/80/60 (Typ.)(CR≥10) (L/R/U/D)
    Viewing Direction :6 o'clock
    White color Chromaticity :Wx:0.313; Wy:0.329
    White Variation :1.25/1.40 (Typ./Max.)(5 points)
    Sunlight Readable :N


    Packaging & Shipping:
    Delivery Information:
    Our professional testing team will test the LCD panels pcs by pcs, to make sure the LCD screen sent out are with good quality.
    Shipping Method:
    By Express: FedEx, DHL, EMS, TNT, UPS,
    By Logistics: By air
    Shipping Time:
    From Monday to Saturday 8:00am-17:30pm
    Shipping Address:
    If by T/T, shipping address as communicate.


    Below are our other LCD panels stock for your easy reference:

    Panel ModelBrandSizeResolution
    ED133TT1E Ink13.3"2200×1650
    ED060SD1E Ink6.0"600×800
    ED060SCTE Ink6.0"600×800
    ET043OC1E Ink4.4"360×640
    EN133UT1E Ink13.3"1600×1200
    ED047TC1E Ink4.7"540×960
    ED133UT1E Ink13.3"1600×1200
    ES133UT1E Ink13.3"1600×1200
    ED060SCQE Ink6.0"600×800
    ED097OD2E Ink9.7"1200×825
    ED060KG1E Ink6.0"1072×1448
    ED060KC1E Ink6.0"1072×1448
    ED060XC9E Ink6.0"758×1024

    We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk

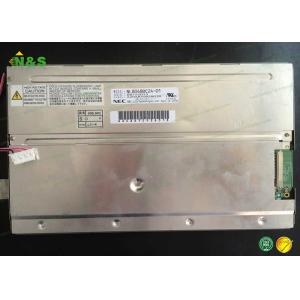

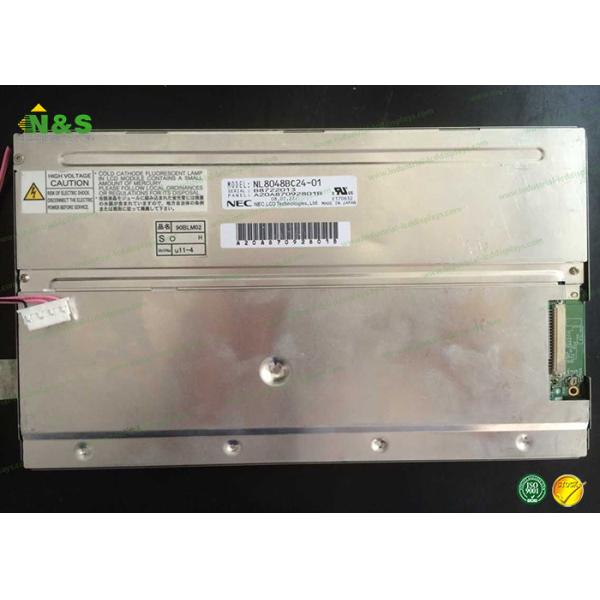

    NL8048BC24-01 Picture
