    Normally Black NEC LCD Panel 21.3 Inch 0.0705×0.2115 Mm Dot Pitch NL204153AC21-09

    Normally Black NL204153AC21-09 21.3 inch NEC LCD Panel with 433.152×324.864 mm Active Area


    NL204153AC21-09 Information

    Panel Brand :NEC
    Panel Model :NL204153AC21-09
    Panel Type :a-Si TFT-LCD , LCM
    Panel Size :21.3 inch
    Resolution :2048(RGB)×1536 , QXGA
    Display Mode :UA-SFT, Normally Black, Transmissive
    Active Area :433.152×324.864 mm
    Outline :457×350×37 mm
    Surface :Antiglare, Hard coating (2H)
    Brightness :800 cd/m² (Typ.)
    Contrast Ratio :750:1 (Typ.)
    Display Colors :16.7M (8-bit) , CIE1931 72%
    Response Time :14/10 (Typ.)(Tr/Td)
    Viewing Angle :85/85/85/85 (Typ.)(CR≥10) (L/R/U/D)
    Frequency :60Hz
    Lamp Type :16 pcs CCFL Embedded (Inverter)
    Signal Interface :LVDS (4 ch, 8-bit) , 80 pins
    Input Voltage :12.0V (Typ.)

    Below are our other LCD panels stock for your easy reference:

    Panel ModelBrandSizeResolution
    ED097OC1E Ink9.7"1200×825
    ED080XC2E Ink8.0"1024×768
    ED080XC1E Ink8.0"1024×768
    ED060SC3E Ink6.0"800×600
    ED050SC1E Ink5.0"800×600
    PD035QX7E Ink3.5"320×240
    PW070DS6E Ink7.0"480×234
    P1924QC1E Ink2.4"240×320

    We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk


    Panel Size :21.3 inch
    Dot Resolution :2048(RGB)×1536 (QXGA)
    Pixel Configuration :RGB Vertical Stripe
    Pixel Density :120 PPI
    Aspect Ratio :4:3 (H:V)
    Form Factor :Flat Rectangle Display
    Dot Pitch :0.0705×0.2115 mm (H×V)
    Pixel Pitch :0.2115×0.2115 mm (H×V)
    Weight :2.70/2.90Kgs (Typ./Max.)
    Surface :Antiglare, Hard coating (2H)
    Active Area :433.152×324.864 mm (H×V)
    Bezel Area :438.2×330.0 mm (H×V)
    Outline Dimension :457×350 mm (H×V)
    Outline Depth :34.0/37.0 (Typ./Max.) mm
    Holes & Brackets :Side mounting holes (4-M3) on left, right bezel
    Landscape or Portrait :Landscape type
    Touch Panel :Without

    Why Choose US:

    1. Prompt reply within 12 hours.

    2. Understand inquiry in any language.

    3. Products with top quality.

    4. Very competitive prices.

    5. 6-year experience in industrial LCD Screen replacements.

    6. Distributor of famous brands Panel: Samsung, LG, Sharp, AUO, TPO, Tianma, Mitsubishi and more.

    7. Fabulous after-sale service.


    What’s our advantage compared with other suppliers?

    (1). Before shipment, we will test every LCD Screen and ensure the quality.

    (2). we provide high quality lcd panels for customers all over the world.

    (3) .We have DBS, ISO9001 Certifications for our Panels.

    (4) .Excellent service on before-sale, on-sale and after-sale.

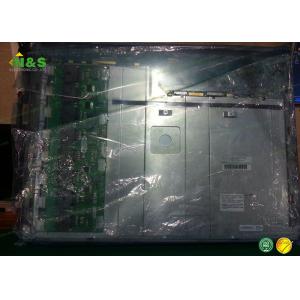

    NL204153AC21-09 NEC LCD Panel Picture
