    Full color NL3224AC35-10 Nec Commercial Displays with 111.36×83.52 mm Active Area

    Ask Lasest Price
    Brand Name : NEC
    Model Number : NL3224AC35-10
    Certification : ISO9001
    Payment Terms : T/T, Western Union, MoneyGram,
    Delivery Time : 1-3 Working Days
    Supply Ability : 500PCS/DAY
    • Product Details
    • Company Profile

    Full color NL3224AC35-10 Nec Commercial Displays with 111.36×83.52 mm Active Area

    Full color NL3224AC35-10 Nec Commercial Displays with 111.36×83.52 mm Active Area


    NL3224AC35-10 Detail

    Panel Brand :NEC
    Panel Model :NL3224AC35-10
    Panel Type :a-Si TFT-LCD , LCM
    Panel Size :5.5 inch
    Resolution :320(RGB)×240 , QVGA
    Display Mode :TN, Normally White, Transmissive
    Active Area :111.36×83.52 mm
    Outline :134×110 mm
    Surface :Glare (Haze 0%), Hard coating (2H)
    Brightness :250 cd/m² (Typ.)
    Contrast Ratio :85:1 (Typ.)
    Display Colors :Full color , CIE1931 50%
    Response Time :16/44 (Typ.)(Tr/Td)
    Viewing Angle :50/50/25/25 (Typ.)(CR≥10) (L/R/U/D)
    Frequency :60Hz
    Lamp Type :1 pcs CCFL Embedded (Inverter)
    Signal Interface :Analog RGB , 24 pins
    Input Voltage :12.0V (Typ.)

    FAQ

    1. Q: Where can I get the price?

    A:We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price, please call us or tell us in your email so that we'll regard your inquiry priority.

    2. Q: How can I get a sample to check your quality?

    A: After price confirmation, you can require for samples to check our quality.

    3. Q: What about the lead time for mass production?

    A: It depends on your order quantity and the season you place the order.

    4. Q: What are your terms of payment?

    A: We accept T/T, Western Union, MoneyGram, PayPal.


    Panel Size :5.5 inch
    Dot Resolution :320(RGB)×240 (QVGA)
    Pixel Configuration :RGB Vertical Stripe
    Pixel Density :72 PPI
    Aspect Ratio :4:3 (H:V)
    Form Factor :Flat Rectangle Display
    Dot Pitch :0.116×0.348 mm (H×V)
    Pixel Pitch :0.348×0.348 mm (H×V)
    Weight :330/335g (Typ./Max.)
    Surface :Glare (Haze 0%), Hard coating (2H)
    Active Area :111.36×83.52 mm (H×V)
    Outline Dimension :134×110 mm (H×V)
    Outline Depth :22.0±1.0 mm
    Landscape or Portrait :Landscape type
    Touch Panel :Without

    We can do for You:

    1. Quality Guarantee:

    100% original new Hard Disk for you.

    2.Fast reply:

    Our well-developed management system enables us to reply any kind of customers' inquiry in 24 hours.

    3.Delivery Guarantee:

    Large Stock System, We have our own warehouses in Shenzhen and Hong Kong, with comprehensive supply lines.

    4.After-Sale Service:

    Professional support team to provide effective service, we are young and full of passion!

    5. Professional acknowledgement of hard disks to provide customers with effective advice.

    We have been in hard disk business for more than 6 years and know the main brands' hard disk very well.

    6. Competitive quotation:

    Our big customer network ensures us to provide large orders regularly for these original factories. What's more, our financial strength enables us to absorb large stock. All these make our price more and more competitive.


    Here comes our other LCD panels stock for your easy reference:

    Pls contact to us for more stock information: salespm@nselectronic.com.hk

    Panel ModelBrandSizeResolution
    ED097OC1E Ink9.7"1200×825
    ED080XC2E Ink8.0"1024×768
    ED080XC1E Ink8.0"1024×768
    ED060SC3E Ink6.0"800×600
    ED050SC1E Ink5.0"800×600
    PD035QX7E Ink3.5"320×240
    PW070DS6E Ink7.0"480×234

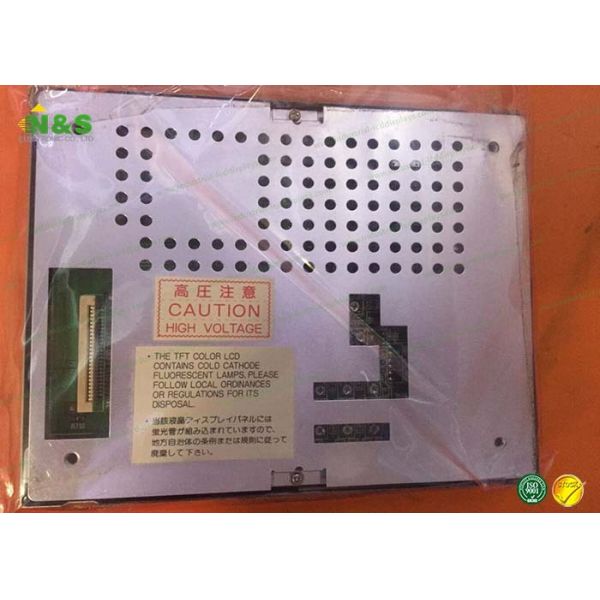

    NL3224AC35-10 NEC LCD Panel Picture
