NEC NL8060BC31-46 12.1 inch tft lcd panel Normally White with 246×184.5 mm

    Buy cheap NEC NL8060BC31-46 12.1 inch tft lcd panel Normally White with 246×184.5 mm from wholesalers

    Buy cheap NEC NL8060BC31-46 12.1 inch tft lcd panel Normally White with 246×184.5 mm from wholesalers
    • Buy cheap NEC NL8060BC31-46 12.1 inch tft lcd panel Normally White with 246×184.5 mm from wholesalers
    • Buy cheap NEC NL8060BC31-46 12.1 inch tft lcd panel Normally White with 246×184.5 mm from wholesalers

    NEC NL8060BC31-46 12.1 inch tft lcd panel Normally White with 246×184.5 mm

    Ask Lasest Price
    Brand Name : NEC
    Model Number : NL8060BC31-46
    Certification : ISO9001
    Payment Terms : T/T, Western Union,paypal
    Supply Ability : 100 PCS / DAY
    Delivery Time : 2-3 working days after payment confirmation
    • Product Details
    • Company Profile

    NEC NL8060BC31-46 12.1 inch tft lcd panel Normally White with 246×184.5 mm

    NEC LCD Panel NL8060BC31-46 12.1 inch Normally White with 246×184.5 mm


    What’s our advantage compared with other suppliers?

    (1). Before shipment, we will test every LCD Screen and ensure the quality.

    (2). we provide high quality lcd panels for customers all over the world.

    (3) .We have DBS, ISO9001 Certifications for our Panels.

    (4) .Excellent service on before-sale, on-sale and after-sale


    NL8060BC31-46 Main Parameters

    Panel Brand :NEC
    Panel Model :NL8060BC31-46
    Panel Type :a-Si TFT-LCD , LCM
    Panel Size :12.1 inch
    Resolution :800(RGB)×600 , SVGA
    Display Mode :TN, Normally White, Transmissive
    Active Area :246×184.5 mm
    Outline :280×210 mm
    Surface :Clear
    Brightness :450 cd/m2 (Typ.)
    Contrast Ratio :600:1 (Typ.)
    Display Colors :262K (6-bit)
    Response Time :6/19 (Typ.)(Tr/Td)
    Viewing Angle :80/80/80/60 (Typ.)(CR≥10) (L/R/U/D)
    Frequency :60Hz
    Lamp Type :WLED
    Signal Interface :CMOS (1 ch, 6-bit)
    Input Voltage :3.3/5.0V (Typ.)(VCC)

    NEC NL8060BC31-46 Mechanical Features

    Panel Size :12.1 inch
    Dot Resolution :800(RGB)×600 (SVGA)
    Pixel Configuration :RGB Vertical Stripe
    Pixel Density :82 PPI
    Aspect Ratio :4:3 (H:V)
    Form Factor :Flat Rectangle Display
    Dot Pitch :0.1025×0.3075 mm (H×V)
    Pixel Pitch :0.3075×0.3075 mm (H×V)
    Weight :670g (Typ.)
    Surface :Clear
    Active Area :246×184.5 mm (H×V)
    Outline Dimension :280×210 mm (H×V)
    Outline Depth :11.0/11.5 (Typ./Max.) mm
    Landscape or Portrait :Landscape type

    Our Company Strength in LCD Screen Sourcing:

    1. ISO9001 certificated, Factory Direct Supplied
    2. Competitive Price and Short Lead-time
    3. Professional Team with Rich Experiences in LCD screen international trade communication.
    4. Small MOQ Support & Fast Response to Customers
    5. Long Product Life Time
    6. 1 Year warranty for our LCD screen replacements.

    FAQ

    Q1: Can I place sample order first?

    A1: Yes, we will quote you different prices for small, medium and large qty. You can order with different price for different qty.

    Q2: How could I pay them?

    A2: We accept T/T, Western Union, MoneyGram, Paypal.

    Q3: How to place the order?

    A3: Please send us your purchase order by e-mail, whatsapp or Skype or you can ask us to send you a Proforma Invoice for your order.

    Q4: How long can I get my order?

    A4: For samples, we will finish production and ship within 1-3 working days. For bulk orders, that will base on the order quantity.

    Q5: How to send us the products?

    A5: We usually use DHL, UPS, FedEx to ship our LCD screen replacements to our clients.


    Here comes our other LCD panels stock for your easy reference:

    Pls contact to us for more stock information: salespm@nselectronic.com.hk

    Panel ModelBrandSizeResolution
    ED133TT1E Ink13.3"2200×1650
    ED060SD1E Ink6.0"600×800
    ED060SCTE Ink6.0"600×800
    ET043OC1E Ink4.4"360×640
    EN133UT1E Ink13.3"1600×1200
    ED047TC1E Ink4.7"540×960
    ED133UT1E Ink13.3"1600×1200
    ES133UT1E Ink13.3"1600×1200
    ED060SCQE Ink6.0"600×800
    ED097OD2E Ink9.7"1200×825
    ED060KG1E Ink6.0"1072×1448
    ED060KC1E Ink6.0"1072×1448

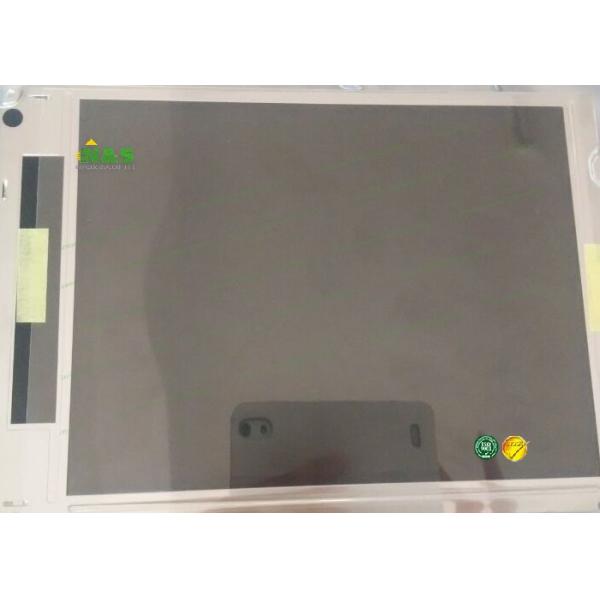

    NL8060BC31-46 Picture
