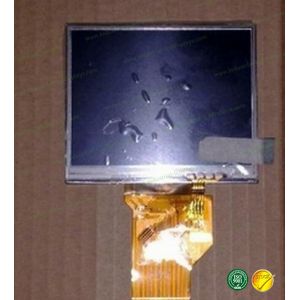

INNOLUX 3.5inch PT035TN24 with Antiglare a-Si TFT-LCD , Panel

Main features:

1. Panel Brand : INNOLUX
2. Resolution : 320(RGB)×240 , QVGA
3. Display Mode : TN, Normally White, Transmissive
4. Active Area : 70.08×52.56 mm
5. Viewing Angle : 65/65/50/65 (Typ.)(CR≥10) (L/R/U/D)
6. Frequency : 60Hz
7. Lamp Type : WLED Without Driver
8. Signal Interface : Parallel RGB (1 ch, 8-bit) + SPI
9. Input Voltage : 3.3V (Typ.)

Technical Specifications for INNOLUX PT035TN24 LCD Panel:

<

Display Mode : TN, Normally White, Transmissive
Contrast Ratio : 500 : 1 (Typ.) (Transmissive)
Display Color : 16.7M (8-bit)
Response Time : 9/16 (Typ.)(Tr/Td)
Viewing Angle : 65/65/50/65 (Typ.)(CR≥10) (L/R/U/D)
White color Chromaticity : Wx:0.310; Wy:0.330

The above parameters are inputted by electronic engineers according to the datasheet, every effort has been made to reduce errors, but we can not guarantee that the parameter is entirely correct.

INNOLUX PT035TN24 Backlight System

Lamp Position : Edge light type
Lamp Type : WLED
Interface Type : Included in panel signal interface
Lamp Driver Board : No

3.5", 320×240, 8-bit, TTL, 2D, WLED, Flat, Panel Hot Model

Our company advantages in the TFT LCD Display Panel area:

As one of the leading LCD distributor in China, we are strong at EOL panels and hard to find shortage panels of world famous Brand such as NEC, SHARP, AUO, SAMSUNG, LG, TIANMA HITACHI/KOE Etc.

Who we are:

      N&S ELECTRONIC CO., LTD established in year 2010. Our headquarters located in Hong Kong and branch office in Shenzhen, Singapore, Malaysia and Canada. We are professional distributor on LCD panels with our own warehouse and stock. Our goal is to provide worldwide supply chain solution based on integrity.

What we do:

      As the leading LCD distributor in China, we are strong at EOL panels and hard to find panels of famous brands such as NEC, SHARP, AUO, SAMSUNG, LG, TIANMA, HITACHI, KOE etc.

     Our products lines are widely used on medical apparatus, industrial control facilities, portable electrical impedance measurement apparatus, digital video camera display, vehicle equipment, aerospace equipment.

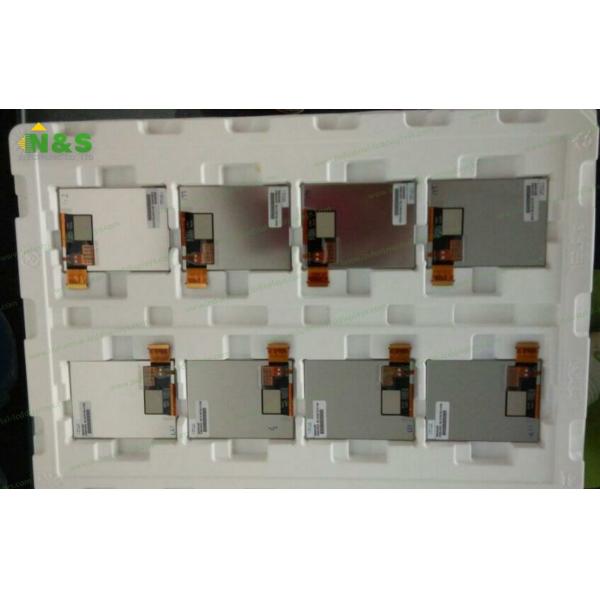

     Our products mostly cover small sizes, like 1.5", 2.0", 2.2", 2.5", 3.0", 3.5", 4.0", 4.2", 4.3", 4.7", 5.0", 5.5", 5.7", 6.0", 6.4", 7.0", 8.0", 10.1", 10.4", 12.1", etc. Most of them are original factory sealed carton packing. Moreover, we will do the brightness inspection of them by testing board.

Our Advantages:

       LCD panels are sourced directly from manufacturers, OEM/CM's and worldwide business partners spanning five continents that include 40 COUNTRIES or AREAS, United States, Italy, Singapore, Korea, Taiwan, Germany, Thailand, Malaysia, Japan, etc. There are more than 540 enterprises. With our strong sourcing team and sufficient stock in our warehouse, and our professional Quality Control team and professional testing instruments, we can offer reliable quality panels at competitive price.

     N&S will be your powerful partner on LCDs in China. Here we are to quote your need.
